| Brand | : | Austar Fan India |
|---|---|---|
| Product | : | HVLS Fan |
| Type | : | Geared |
| Size | : | 20 Feet |
| Blades | : | 2 Ribs |
| Speed | : | 50 rpm Maximum ( Variable from 0 to 60 ) |
| Color | : | Matt black, Customizable |

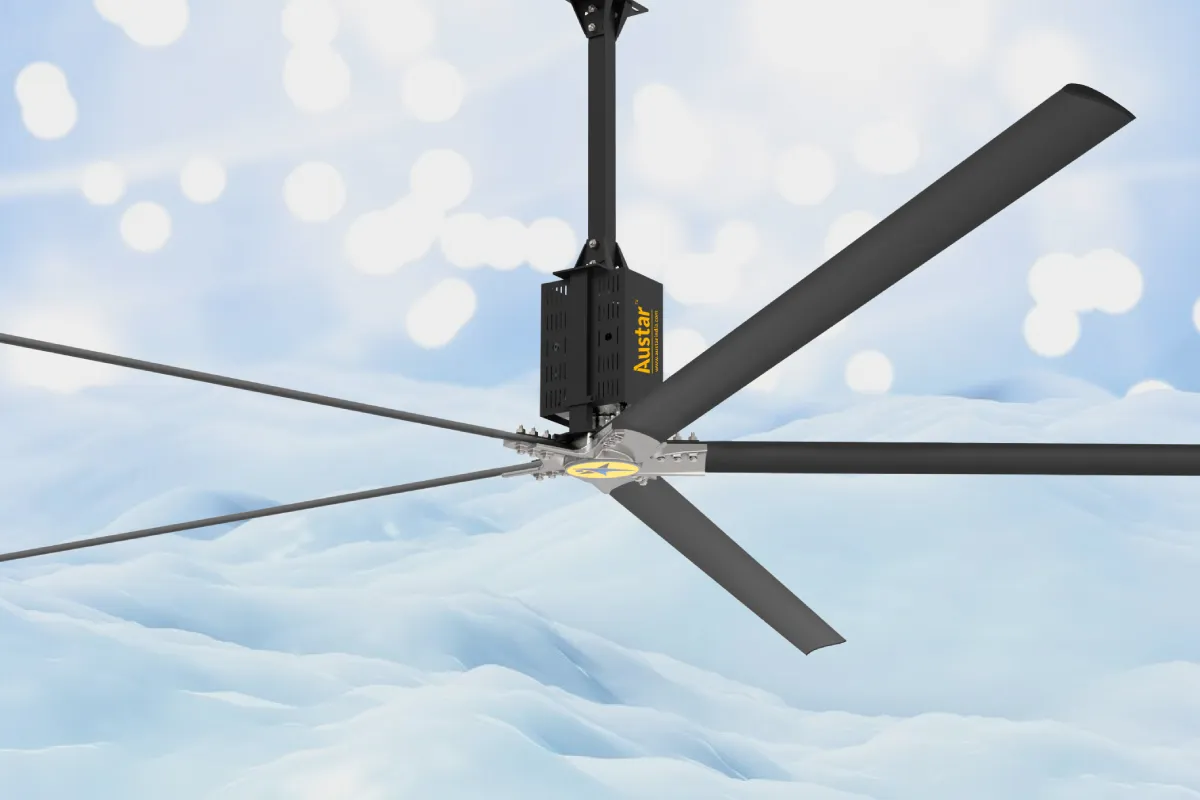

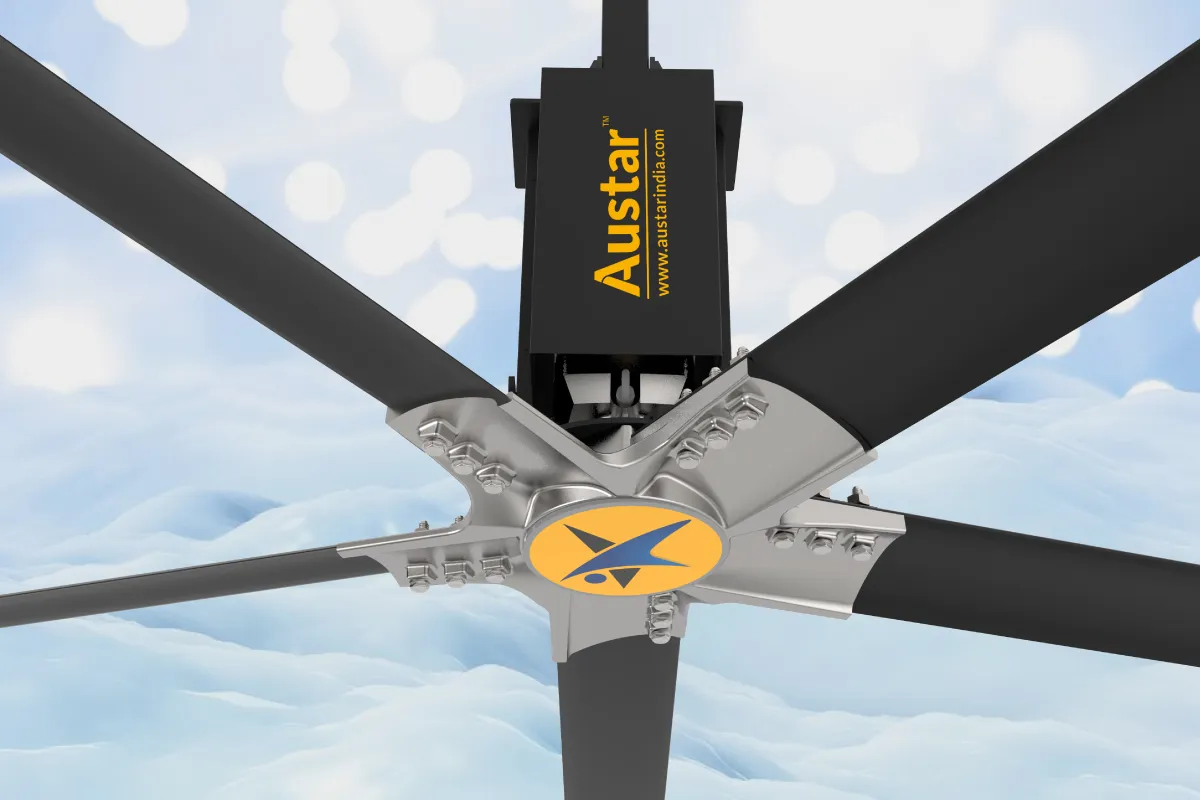

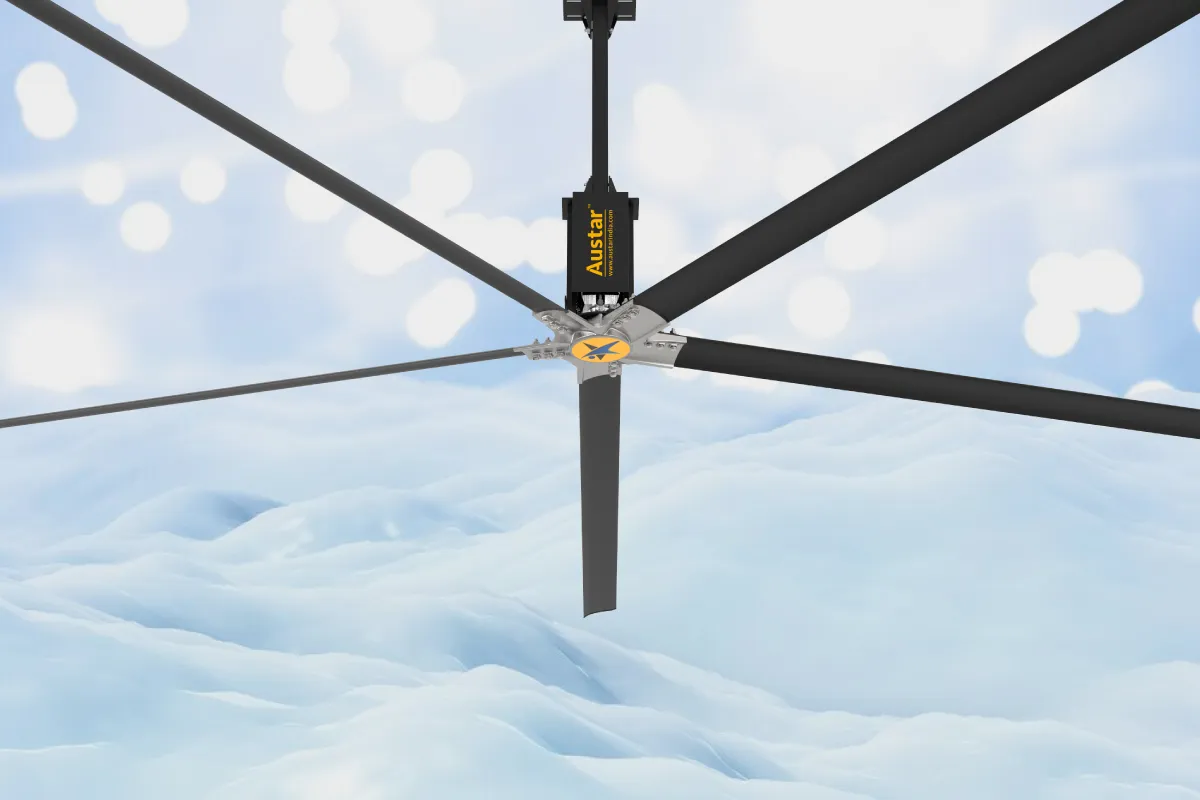

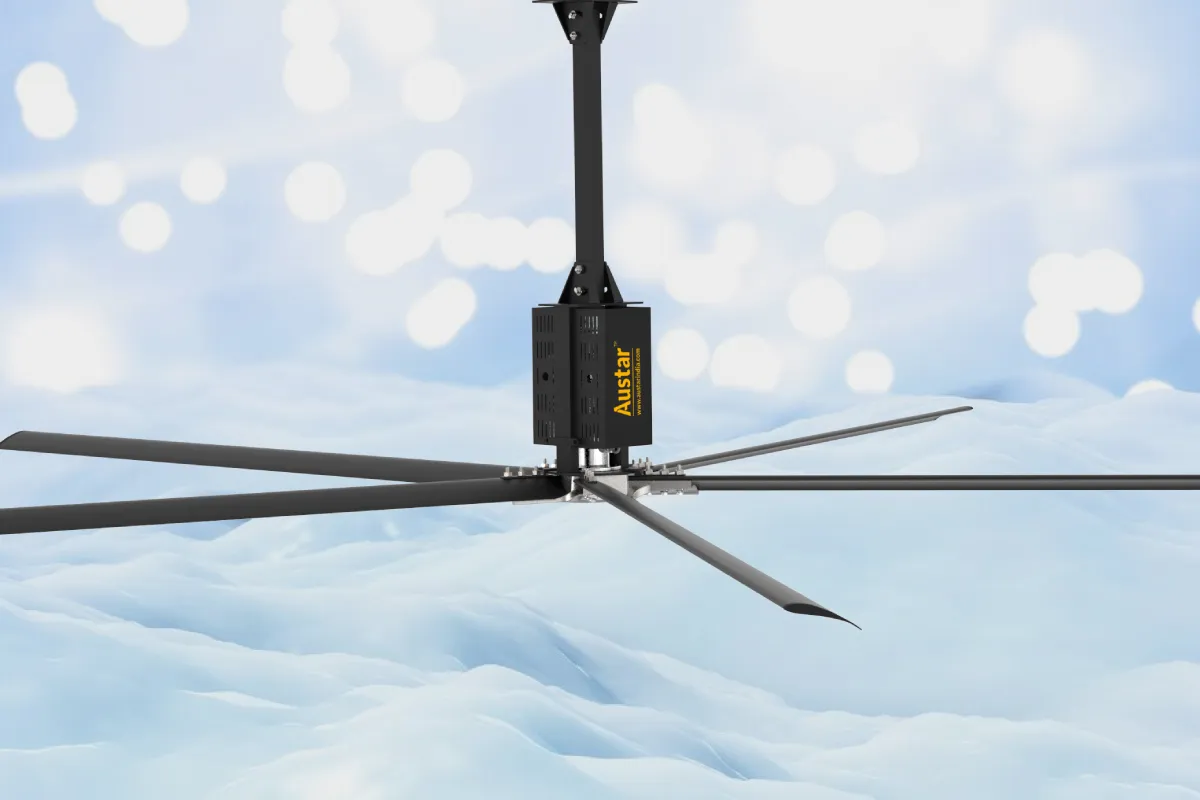

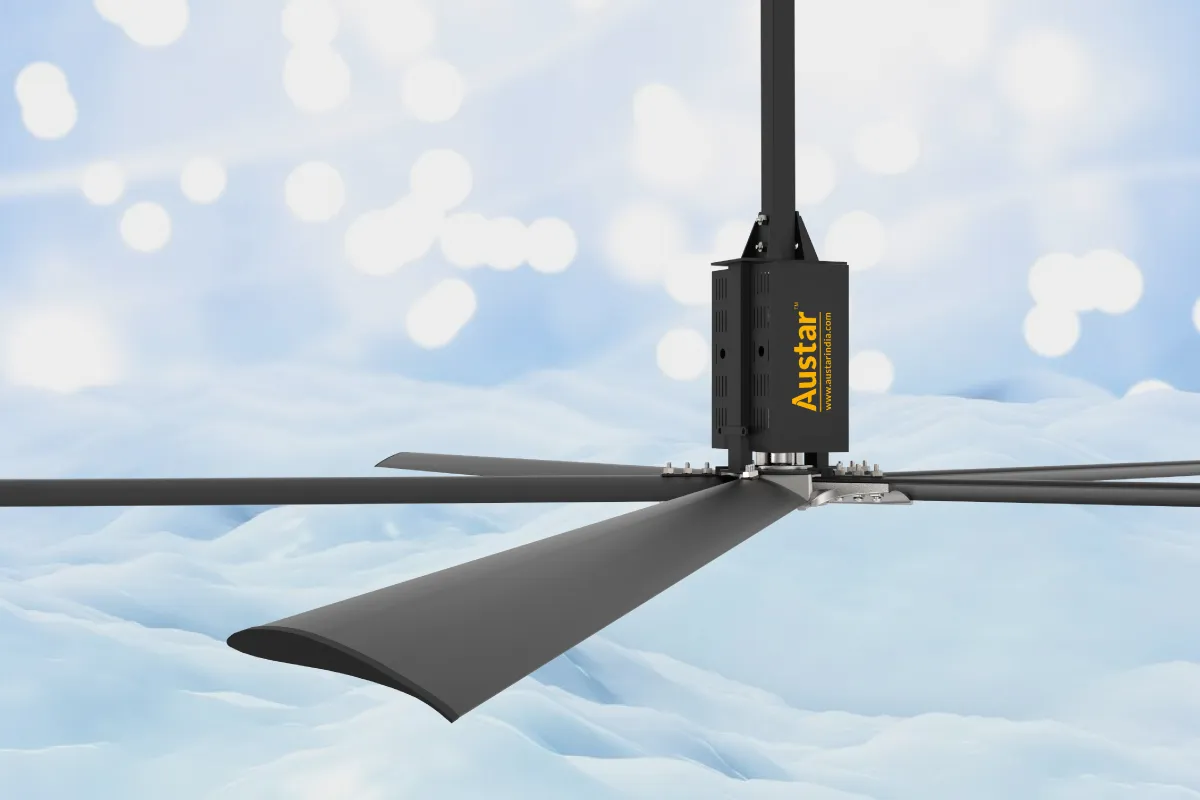

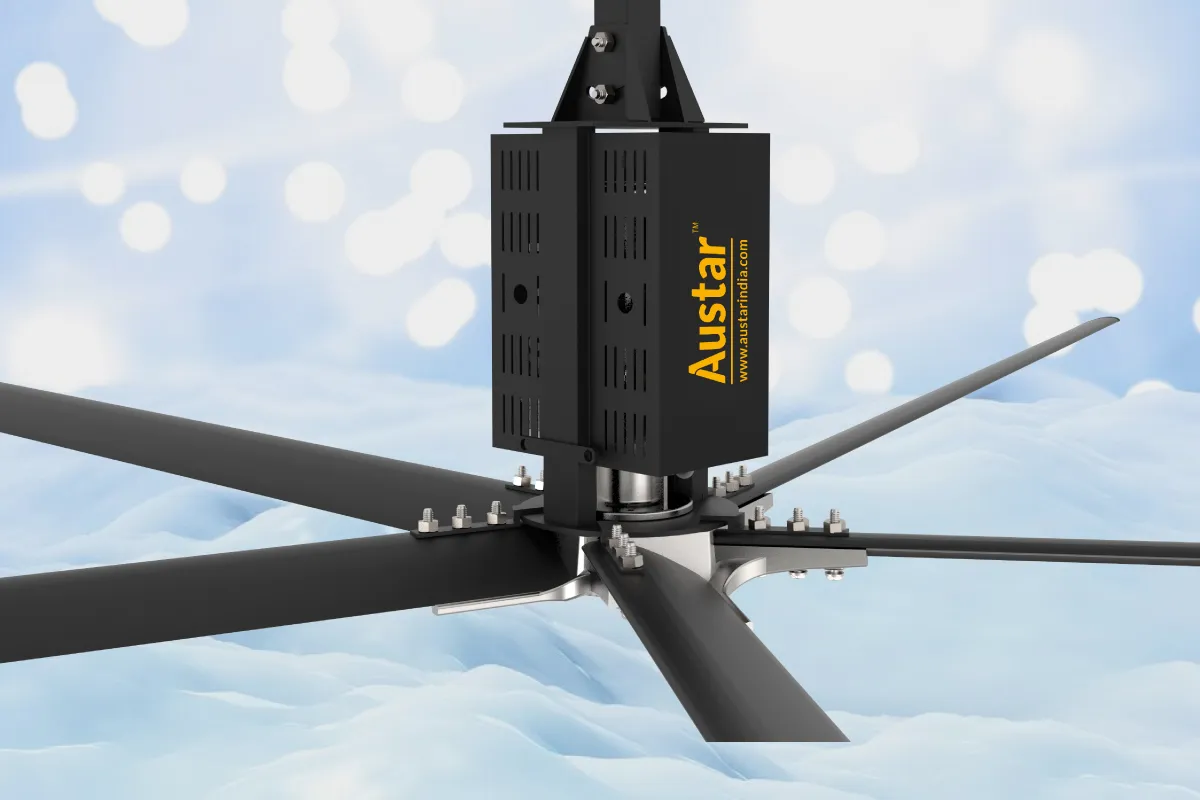

AUSTAR AS series Fan are Geared Type HVLS Fans driven by German make Geared Motors, with five Aero Blades and Single piece die casted Hub. Are controlled through Variable Frequency Drive for Reverse / Forward and speed adjustment features. Complies to international safety standards. Available in Standard Matt Black color and customized color options.
| Parameter | Specification | ||
| 1. | Make | “AUSTAR“ | |
| 2. | Model No. | AS205 | |
| 3. | Fan Size | 20ft Dia | |
| 4. | No. of Blades | 5 No.s | |
| 5. | Air Volume | 340000 CFM | |
| 6. | Motor Rating | 1.5 KW | |
| 7. | Speed | 50 rpm Maximum ( Variable from 0 to 60 ) | |
| 8. | Noise | 60 – 65 db | |
| 9. | Input Power | Single Phase / Three Phase – 50Hz | |
| 10. | Weight | 140 Kgs | |
| 11. | Construction | Frame Structure | M.S. ( Powder Coated ) |
| Hanging Structure | M.S. ( Powder Coated ) | ||
| Impeller ( Hub ) | Single Piece Aluminum Die Casted | ||
| Fasteners | High Tensile 10.9 Grade HEX Bolts (Unbrako / TVS make) | ||
| 12. | Blades | Design | Cambered Aerofoil Design |
| M.O.C. | Aluminum 6063 ( Powder Coated ) | ||
| Sectional Width | 220mm | ||
| Wall Thickness | 2mm | ||
| No. of Ribs | 2 Ribs | ||
| 13. | Electric Geared Motor | Make | NORD ( German Make ) |
| Insulation Class | Class F | ||
| Efficiency Class | IE2 | ||
| Enclosure | IP55 | ||
| 14. | Control Penal | Mounting | Wall Mounting 4 – 5 ft from Floor Level |
| VFD Make | ‘Danfoss/Fuji’ Make | ||
| Enclosure | IP 55, Power Coated Steel cabinet | ||
| Compatibility | BMS Compatibility | ||
| 15. | Safety | Certification | Compliance certificate to CE requirements |
| Bolted Joints | All Nuts are self locking
type Nylock Nuts which eliminates chances of
loosening.
As additional Safety All Bolted joints are wrapped with SS wire Rope. |
||
| Motor – Hub Assembly | It is coupled through self
locking type Split Couplings.
As an additional safety Antifall S Bends are provided to prevent dropping of Hub in event of coupling failure. |
||
| 16. | Warranty | 3 Years f or Hub,
Blade, & Structure.
1 Year for Geared Motor & Controller. |
|
20 Feet Geared HVLS Fan Manufacturer
Austar Technologies is a leading 20 feet geared HVLS fan manufacturer, offering high-performance industrial ceiling fans for factories, warehouses, gymnasiums, commercial buildings, and other large spaces. Designed for maximum airflow efficiency, our HVLS fans ensure better ventilation, reduced energy costs, and improved working conditions. This 20 Feet HVLS Fan is equipped with 2 Rib Blades and operates at a maximum speed of 50 RPM (variable from 0 to 60 RPM), allowing for customized airflow as per the facility’s needs. The geared mechanism ensures smooth and silent operation, making it suitable for industrial and commercial applications. It is available in matt black and customizable colors and integrates well into various environments.
Our Geared HVLS industrial ceiling fans are built with durability and low maintenance in mind, ensuring long-lasting performance with minimal upkeep. With CE-certified components and international quality standards, it guarantees superior safety, reliability, and efficiency. These energy-efficient fans help lower cooling costs, improve air circulation, and create a comfortable environment by eliminating hot spots and reducing humidity. Ideal for large-scale facilities, the 20 Feet HVLS Fan enhances productivity and operational efficiency while delivering cost-effective cooling solutions.
Benefits of 20 Feet Industrial HVLS Ceiling Fan
A 20 feet industrial HVLS ceiling fan provides optimal air circulation, assuring even airflow distribution across large areas. It significantly reduces humidity, prevents heat buildup, and creates a comfortable and healthy workspace. This high-volume, low-speed fan consumes minimal energy, making it a cost-effective alternative to traditional cooling solutions. It enhances HVAC system efficiency, reducing the need for excessive air conditioning and cutting down on energy expenses.
Engineered for silent operation, it minimizes noise pollution, making it ideal for factories, warehouses, airports, railway stations, and auditoriums. Its high-durability construction ensures long service life with minimal maintenance requirements. The sleek design and customizable color options make it a perfect fit for industrial and commercial environments, offering both functionality and aesthetic appeal. With Austar Technologies’ commitment to quality, this 20 feet HVLS ceiling fan guarantees exceptional performance, energy efficiency, and long-term reliability.
Key Component Specifications
Gear
Moter
German Make
Nord / SEW German make. IP 55 Protection, IE2 Efficiency, with Reinforced Bearing.
Blade
Mounting
Hub
German Make
Aluminium HE9 Grade. Die Casted Single Piece with Radiography tested.
Blades
German Make
Aluminium HE9 Grade. Having broadest blade section in market. Having Two Ribs for extra strength.
Paint
Hot Deep Galvanized
Driven by VFD of reputed make
i.e Lenze /
Danfoss
/
Crompton.
Control : Operated through KeyPad having easy and long life keys for Start / Stop, Reverse / Forward and Speed increase / decrease. Cable connection are through plug and play type for easy installation, maintenance and trouble free long lasting operation.
Models are CE certified by third party agency ‘TUV Nord’
